This article explains the point of common coupling and its role in grid connected power systems. You will learn how engineers use the PCC to control power quality, protection, and regulatory compliance.

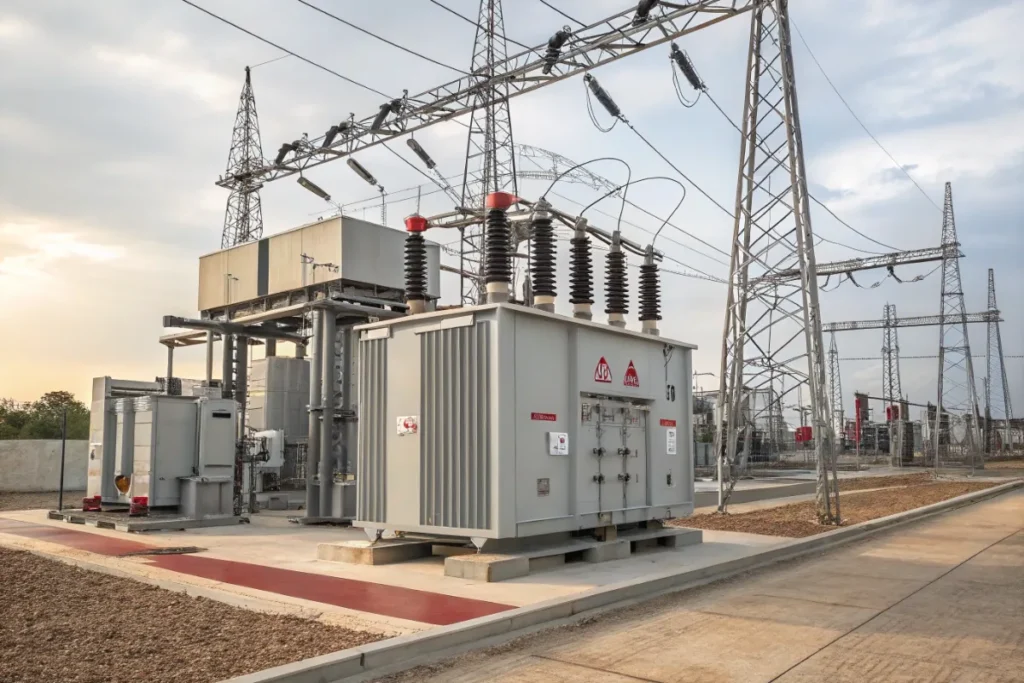

What is the Point of Common Coupling (PCC)?
The point of common coupling is the electrical node where multiple customers or generators connect to the same utility network.
Engineers define the PCC as the reference point for voltage quality, harmonic limits, and disturbance responsibility. Any fluctuation, distortion, or imbalance measured at this point determines whether a user complies with grid standards. This boundary allows utilities to protect network performance while giving customers clear technical obligations.
The PCC becomes critical whenever distributed generation, industrial loads, or renewable plants connect to shared infrastructure. Engineers use it during interconnection studies, power quality analysis, and protection coordination. Without a clear PCC definition, responsibility for disturbances becomes difficult to assign.
Technical Drivers That Define the Point of Common Coupling
Several system characteristics influence PCC location and performance.
- Network topology and feeder layout
- Number of connected users
- Short circuit strength at the connection node
- Transformer placement and impedance
- Protection zone boundaries
- Metering and monitoring requirements
PCC Configurations in Power Systems
Single Customer PCC
One customer connects directly to the utility at a dedicated node. Utilities often use this setup for large industrial or renewable plants.
Shared Feeder PCC
Multiple users share the same feeder connection point. Power quality effects propagate across all connected loads.
Substation Level PCC
The PCC sits at a medium or high voltage busbar. Engineers use this for large generators and transmission level interconnections.
Microgrid Point of Common Coupling
The PCC defines where a microgrid interfaces with the main grid. It controls islanding and reconnection behavior.
Why the PCC Creates Engineering Challenges
The PCC concentrates technical responsibility. Harmonics, flicker, voltage unbalance, and fault contributions all accumulate at this node. Engineers must ensure compliance under varying load and generation conditions.
In renewable projects, inverter behavior directly affects PCC voltage quality. Weak grids increase sensitivity to disturbances. Poor PCC design can trigger protection trips, grid code violations, and operational limits.
PCC vs Point of Connection: How They Differ
Engineers often confuse the point of common coupling with the point of connection, but each serves a different technical purpose.
The point of connection defines the physical interface where a facility ties into the grid. It marks where cables, breakers, and transformers link a plant to the utility network. Engineers use it for ownership boundaries, protection layout, and equipment installation.
The point of common coupling defines the electrical reference node where power quality gets evaluated. It may sit at the same physical location as the point of connection, but it can also sit upstream where multiple users share a feeder or busbar.
In simple terms, the point of connection shows where you connect, while the point of common coupling shows where the grid measures system impact. Engineers use both to assign responsibility, ensure compliance, and protect network performance.
Best Practices for PCC Compliance
Engineers reduce PCC risks through careful system analysis and equipment selection. They evaluate grid strength, fault levels, and harmonic impedance early.
- Effective strategies include
- Performing detailed power quality studies
- Selecting compliant inverter control modes
- Installing harmonic filters or STATCOMs
- Coordinating protection settings
- Monitoring PCC performance in real time
By treating the PCC as a core design element instead of a connection formality, professionals achieve smoother grid integration and higher system reliability.
